VSC IPT4VDDLF28 / D
116.62 €
Out of stock

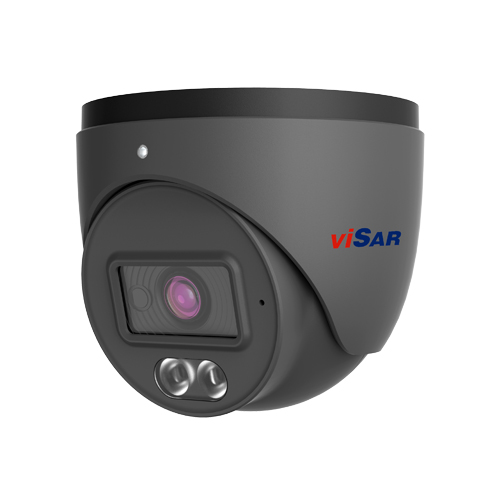

VSC IPT4VDDLF28 is a 4MP Dual Illumination Water-proof Turret Network Camera, supporting H.265+/H.265/H.264+/H.264/MJPEG compression, dual streams, auto day/night (ICR), 3D DNR, Digital WDR, BLC, HLC, ROI coding, and smart supplementary light. It offers fixed 2.8 mm or 3.6 mm lenses, IR and white light ranges of 10–20 m, built-in MIC, IP67 ingress protection, DC12V/PoE power, smart motion detection, and human VCA events. Operating temperature: −30 °C to +60 °C.
Product Description
| Model | |
| Model | VSC IPT4VDDLF28 / VSC IPT4VDDLF28D |
| Camera | |
| Image Sensor | 1/3″ CMOS |
| Image Size | 4MP (2560×1440) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Iris Type | Fixed iris |
| Min. Illumination | 0.09 lux @F2.2, AGC ON; 0 lux with illuminator on |
| Lens Mount | M12 |
| Day/Night | ICR |
| Focus | Fixed |
| WDR | Digital WDR |
| BLC / HLC | Yes / Yes |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
| S/N Ratio | ≥50 dB |
| Supplement Light Range | IR: 10–20 m; White light: 10–20 m |
| Lens | |
| Options | 2.8 mm @F2.2 (H: 96°, V: 53.7°, D: 112°)3.6 mm @F2.2 (H: 74.5°, V: 41.5°, D: 86.5°) |
| DORI Distance (2.8 mm) | Detect: 57 m; Observe: 23 m; Recognize: 11 m; Identify: 6 m |
| DORI Distance (3.6 mm) | Detect: 76 m; Observe: 31 m; Recognize: 15 m; Identify: 8 m |
| Image | |
| DNR | 3D DNR |
| Image Settings | ROI, saturation, brightness, hue, contrast, wide dynamic, sharpness, mirror, image flip, NR etc.; adjustable via client or web browser |
| ROI | Each ROI configurable separately |
| Video | |
| Compression | Main: H.265+/H.265/H.264+/H.264Sub: H.265+/H.265/H.264+/H.264/MJPEG |
| H.265 Standard | Main Profile@Level 4.1 High Tier |
| Resolution | 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 480×240, CIF |
| Main Stream | 4MP/3MP/1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Sub Stream | D1/VGA/480×240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate Type | VBR / CBR |
| Bit Rate | 64 Kbps ~ 3 Mbps |
| Audio Compression | G.711A / G.711U |
| Interfaces | |
| Network | RJ45 |
| Audio | 1CH built-in MIC |
| Video Output | No |
| Storage | Network remote storage |
| Reset | No |
| Functions | |
| Remote Monitoring | Web browser / NVR / NVMS2.X / Mobile APP |
| Online Connection | Up to 3 users simultaneously; multi-stream transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP |
| Interface Protocol | ONVIF |
| Smart Event | (Human) line crossing / region intrusion detection |
| Motion Detection | Smart motion detection; filters alarms triggered by non-human targets |
| Security | Video/firmware/configuration encryption; illegal login lock; IP filtering; 802.1x; HTTP basic/digest authentication; watermark; video mask; heartbeat |
| Browser Compatibility | IE11 (plug-in required), Chrome 89.0+, Edge 89.0+, Firefox 87.0+, Safari 14.0+ |
| Power & Protection | |
| Power Supply | DC12V / PoE (IEEE 802.3af) |
| Power Consumption | < 5 W |
| Ingress Protection | IP67 |
| Environment | |
| Operating Conditions | −30 °C ~ +60 °C; <95% RH (non-condensing) |
| Storage Conditions | −30 °C ~ +65 °C; <95% RH (non-condensing) |
| Installation & Physical | |
| Installation | Ceiling mounting; wall mounting |
| Dimensions | Φ94.6 × 82.8 mm |
| Weight | Approx. 0.42 kg |
| Certificates & Compliance | |
| Certificates | CE, FCC |
| Compliance | RoHS; WEEE (2012/19/EU); 94/62/EC; REACH (EC1907/2006) |
