VSC IPT6VD-ALMZ / D
352.24 €
Out of stock

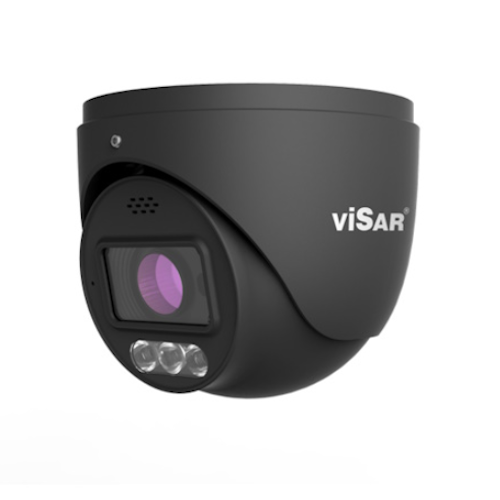

VSC IPT6VD-ALMZ is a 6MP Dual Illumination Water-proof Turret Network Camera, supporting H.265+/H.265/H.264+/H.264/MJPEG, triple streaming, auto day/night, 3D DNR, WDR, BLC, HLC, ROI coding, smart supplement light, and multiple security alarms. It offers motorized 2.8–12 mm lens, IR and white light ranges of 30–40 m, microSD storage up to 256 GB, IP66 protection, DC12V/PoE power, blue/red warning light with customizable voice alarm, SMD, intelligent VCA, and remote monitoring via APP, NVR, or browser. Operating temperature: −30 °C to +60 °C.
Product Description
| Model | |
| Model | VSC IPT6VD-ALMZ / VSC IPT6VD-ALMZD |
| Camera | |
| Image Sensor | 1/2.39″ CMOS |
| Image Size | 6MP (3200×1800) |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Iris Type | DC Iris |
| Min. Illumination | Color: 0.02 lux @F1.6, AGC ON; B/W: 0 lux with illumination |
| Lens Mount | Φ14 |
| Day/Night | Auto / Day / Night / Timing (ICR) |
| Focus | Motorized |
| WDR | 120 dB |
| BLC / HLC | Yes / Yes |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
| S/N Ratio | ≥50 dB |
| Supplement Light Range | IR: 30–40 m; White light: 30–40 m |
| Lens | |
| Focal Length | 2.8–12 mm @F1.6, motorized |
| Field of View | H: 108°~36°; V: 57°~20°; D: 129°~42° |
| DORI (2.8 mm) | Detect: 66 m; Observe: 27 m; Recognize: 13 m; Identify: 7 m |
| DORI (12 mm) | Detect: 204 m; Observe: 82 m; Recognize: 41 m; Identify: 20 m |
| Image | |
| DNR | 3D DNR |
| Image Settings | ROI, saturation, brightness, hue, contrast, wide dynamic, sharpness, mirror, image flip, NR etc.; adjustable via client or browser |
| ROI | Each ROI configurable separately |
| Video | |
| Compression | Main: H.265+/H.265/H.264+/H.264Sub/Third: H.265+/H.265/H.264+/H.264/MJPEG |
| H.265 Standard | Main Profile@Level 4.1 High Tier |
| Resolution | 6MP (3200×1800), 4MP (2688×1520), 2K (2560×1440), 1080P, 720P, D1, VGA (640×480), 640×360, CIF, 480×240 |
| Main Stream | 60Hz: 6MP(1~20fps)/4MP/2K/1080P(1~30fps)50Hz: 6MP(1~20fps)/4MP/2K/1080P(1~25fps) |
| Sub Stream | 720P/D1/VGA/640×360/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Third Stream | D1/480×240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate Type | VBR / CBR |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Audio Compression | G.711A / G.711U |
| Interfaces | |
| Network | RJ45 |
| Audio | 1CH input; 1CH output; 1CH built-in MIC; 1CH speaker |
| Video Output | No |
| Storage | microSD up to 256 GB; network remote storage |
| Reset | No |
| Functions | |
| Remote Monitoring | Web browser / NVR / NVMS2.X / Mobile APP |
| Online Connection | Up to 6 users simultaneously; multi-stream |
| Network Protocol | UDP, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, IPv4, IPv6, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, QoS |
| Interface Protocol | ONVIF |
| Smart Functions | Line crossing, region intrusion (human/vehicle classification), abandoned/missing object, motion detection, SMD, SD error/full, IP conflict, disconnection, video exception |
| Alarms | Blue/red light warning; audio alarm; user-defined voice import |
| Security | Video/firmware/config encryption; illegal login lock; IP filtering; 802.1x; HTTP basic/digest authentication; watermark; video mask; heartbeat; config backup; ANR; corridor mode |
| Browser Compatibility | IE11 (plug-in), Chrome 89.0+, Edge 89.0+, Firefox 87.0+, Safari 14.0+ |
| Power & Protection | |
| Power Supply | DC12V / PoE (IEEE 802.3af) |
| Power Consumption | < 11 W |
| Ingress Protection | IP66 |
| Environment | |
| Operating Conditions | −30 °C ~ +60 °C; <95% RH (non-condensing) |
| Storage Conditions | −30 °C ~ +65 °C; <95% RH (non-condensing) |
| Installation & Physical | |
| Installation | Ceiling or wall mounting |
| Dimensions | Φ111.5 × 99.6 mm |
| Weight | Approx. 0.62 kg |
| Certificates & Compliance | |
| Certificates | CE, FCC |
| Compliance | RoHS; WEEE (2012/19/EU); 94/62/EC; REACH (EC1907/2006) |
